Gluten UI

Gluten event

Gluten provides two events GlutenBuildInfoEvent and GlutenPlanFallbackEvent:

  • GlutenBuildInfoEvent, it contains the Gluten build information so that we are able to be aware of the environment when doing some debug. It includes Java Version, Scala Version, GCC Version, Gluten Version, Spark Version, Hadoop Version, Gluten Revision, Backend, Backend Revision, etc.

  • GlutenPlanFallbackEvent, it contains the fallback information for each query execution. Note, if the query execution is in AQE, then Gluten will post it for each stage.

Developers can register SparkListener to handle these two Gluten events.

SQL tab

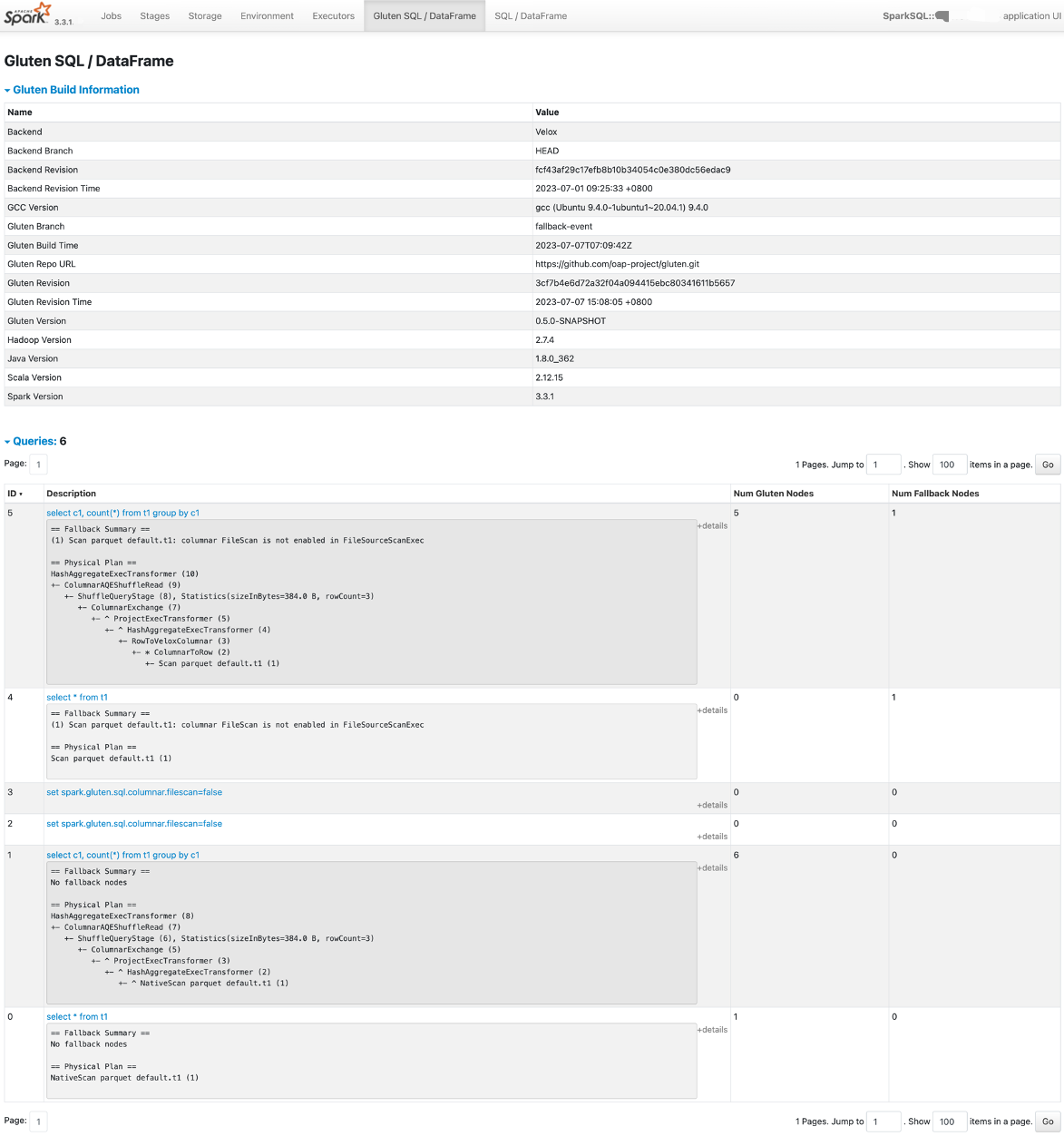

Gluten provides a tab based on Spark UI, named Gluten SQL / DataFrame

Gluten-UI

This tab contains two parts:

  1. The Gluten build information.
  2. SQL/Dataframe queries fallback information.

If you want to disable Gluten UI, add a config when submitting --conf spark.gluten.ui.enabled=false.

History server

Gluten UI also supports Spark history server. Add gluten-ui jar into the history server classpath, e.g., $SPARK_HOME/jars, then restart history server.
