Web UI

Apache Spark provides a suite of web user interfaces (UIs) that you can use to monitor the status and resource consumption of your Spark cluster.

Table of Contents

• Overview
• Jobs Tab
  • Jobs detail
• Stages Tab
  • Stage detail
• Storage Tab
• Environment Tab
• Executors Tab
• SQL Tab
  • Query Listing
  • SQL Plan Visualization
  • Execution Detail Page
  • SQL metrics
• Structured Streaming Tab
• Streaming (DStreams) Tab
• JDBC/ODBC Server Tab

Overview

The Web UI is built into every Spark application: while the application is running, it serves a set of web pages that let you inspect what is happening inside it. Typical uses include monitoring a running job, diagnosing a failure, analyzing the execution plan of a slow SQL query, and checking how memory and tasks are distributed across executors.

By default the Web UI is available at http://<driver-host>:4040. When that port is already in use (for example, when several Spark applications run on the same host), Spark tries 4041, 4042, and so on until it finds a free port, and logs the chosen port at startup. You can override the default port with spark.ui.port, and tune other UI behavior through the spark.ui.* properties documented in the Configuration reference.

The Web UI is tied to the lifetime of the application: once it exits, the UI is no longer reachable. To inspect an application after it has finished, enable event logging and run the Spark History Server, which reconstructs an equivalent UI from the persisted event log; see Monitoring and Instrumentation for setup details.

The remaining sections walk through each tab in the Web UI’s top navigation bar.

Jobs Tab

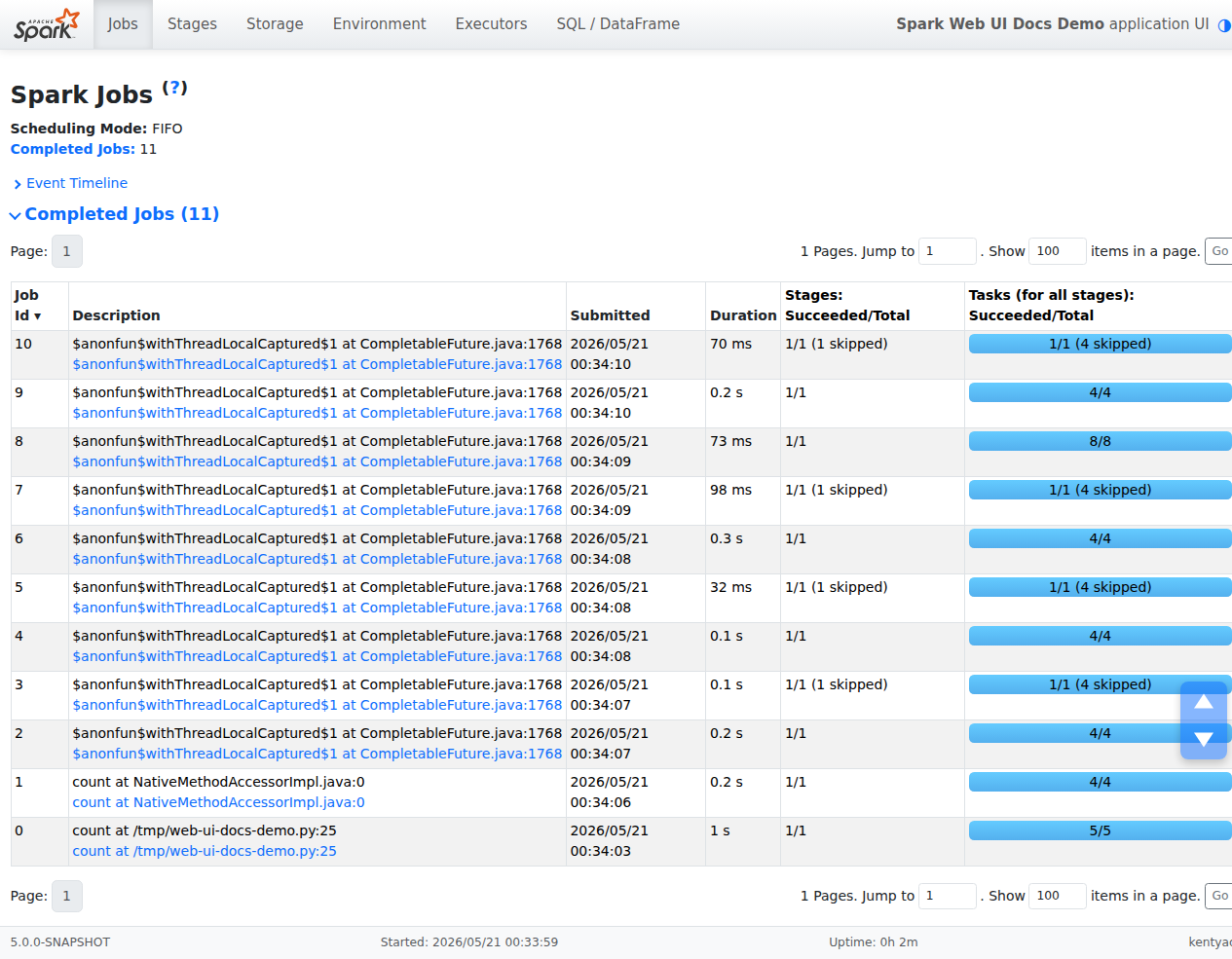

The Jobs tab displays a summary page of all jobs in the Spark application and a details page for each job. The summary page shows high-level information, such as the status, duration, and progress of all jobs and the overall event timeline. When you click on a job on the summary page, you see the details page for that job. The details page further shows the event timeline, DAG visualization, and all stages of the job.

The information displayed at the top of the page includes:

• Scheduling mode: See job scheduling
• Number of jobs per status: Active, Completed, Failed
• Event timeline: Displays in chronological order the events related to the executors (added, removed) and the jobs
• Details of jobs grouped by status: Displays detailed information of the jobs including Job ID, description (with a link to detailed job page), submitted time, duration, stages summary and tasks progress bar

The current user, application start time, and total uptime are shown in the footer at the bottom of every page.

Jobs detail

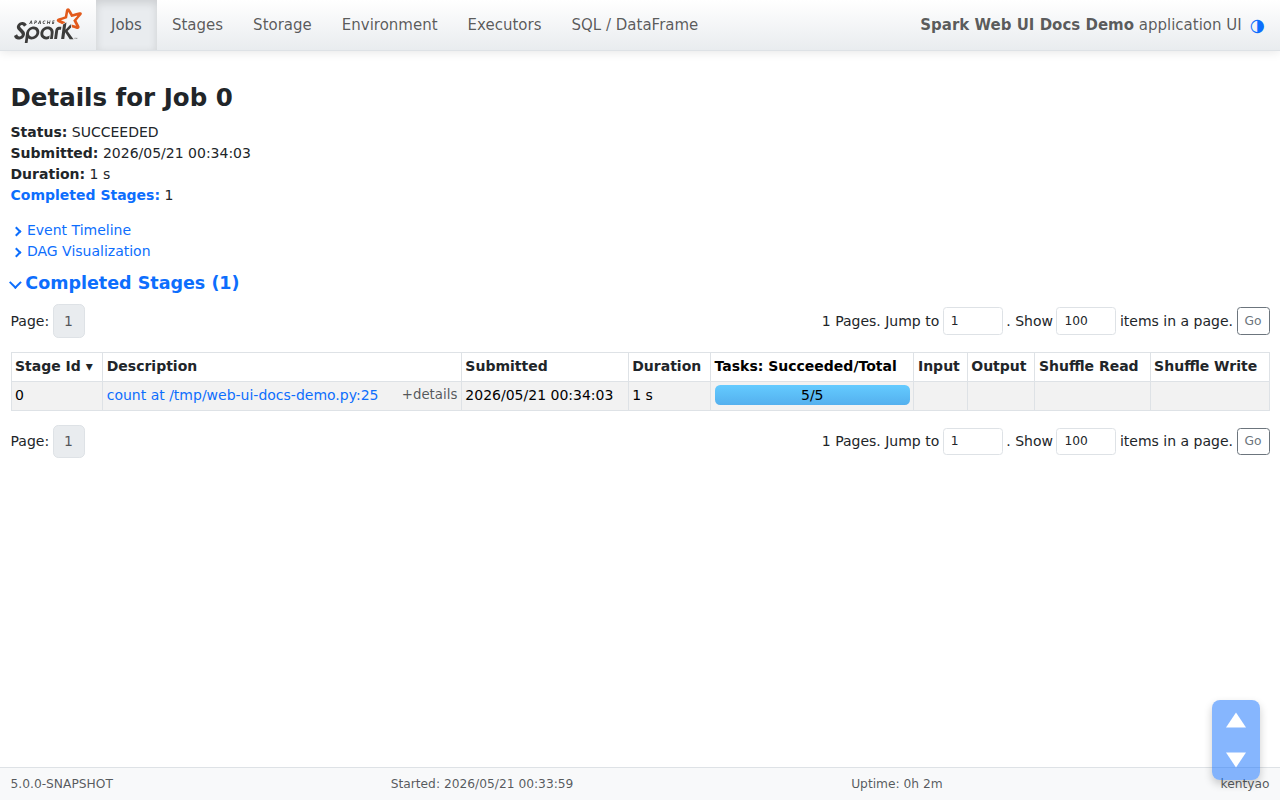

This page displays the details of a specific job identified by its job ID.

• Job Status: (running, succeeded, failed)
• Number of stages per status (active, pending, completed, skipped, failed)
• Associated SQL Query: Link to the SQL tab for this job
• Event timeline: Displays in chronological order the events related to the executors (added, removed) and the stages of the job
• DAG visualization: Visual representation of the directed acyclic graph of this job where vertices represent the RDDs or DataFrames and the edges represent an operation to be applied on RDD
• List of stages (grouped by state active, pending, completed, skipped, and failed), with columns including Stage ID, description, submitted timestamp, duration, tasks progress bar, Input (bytes read from storage), Output (bytes written to storage), Shuffle read (total shuffle bytes and records read locally and from remote executors), and Shuffle write (bytes and records written to disk for a future shuffle)

Stages Tab

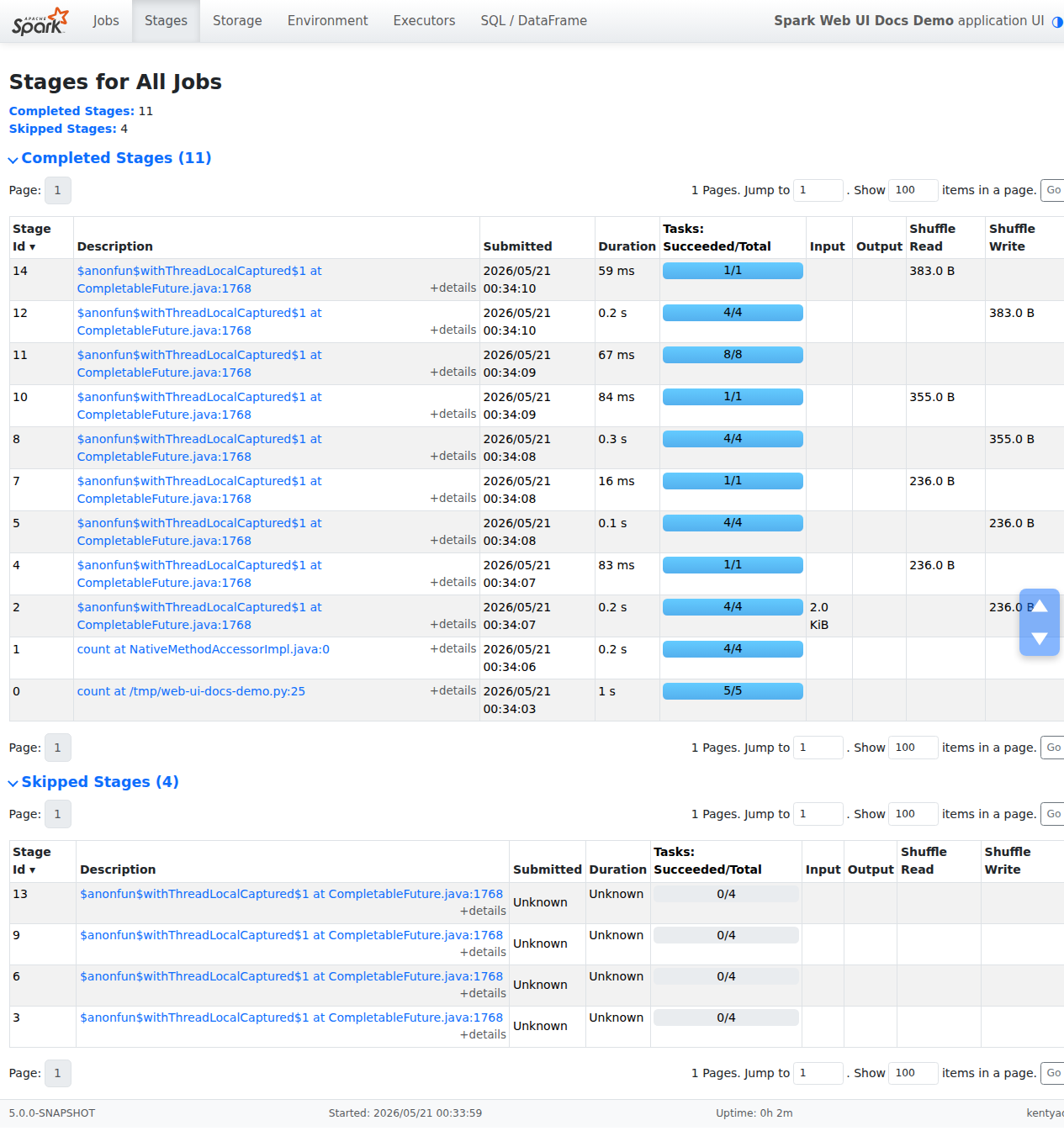

The Stages tab displays a summary page that shows the current state of all stages of all jobs in the Spark application.

At the top of the page is a summary with the count of all stages by status (active, pending, completed, skipped, and failed). In Fair scheduling mode a table of pool properties is also shown.

Below the summary are the stages, grouped by status (active, pending, completed, skipped, failed). An active stage shows a small (kill) link next to its description; clicking it asks Spark to cancel that stage. Only failed stages show the failure reason. Click a stage’s description to open its Stage detail page.

Stage detail

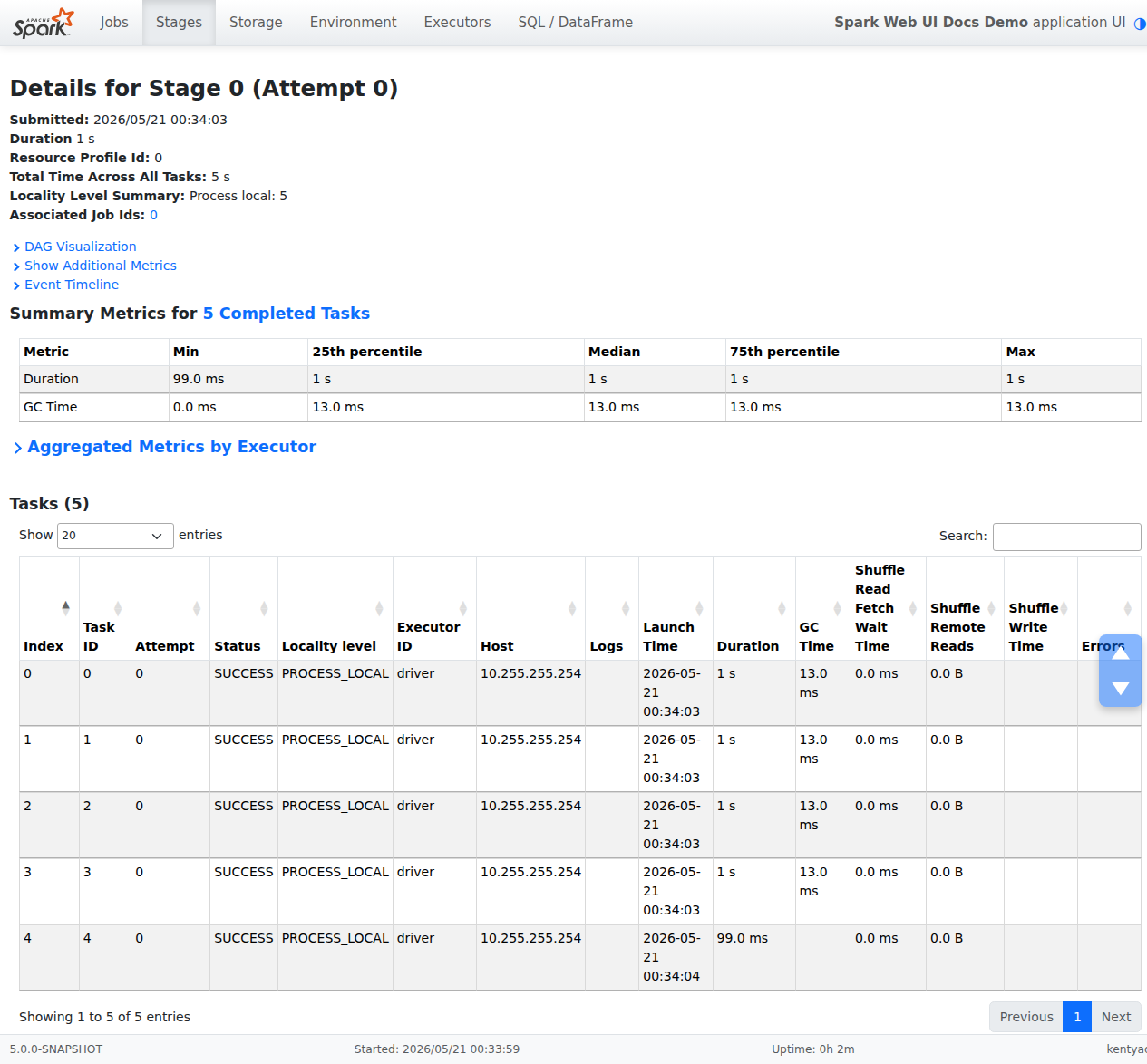

The stage detail page begins with information like total time across all tasks, Locality level summary, Shuffle Read Size / Records and Associated Job IDs.

It also shows a visual representation of the directed acyclic graph (DAG) of this stage, where vertices represent the RDDs or DataFrames and the edges represent an operation to be applied. Nodes are grouped by operation scope in the DAG visualization and labelled with the operation scope name (BatchScan, WholeStageCodegen, Exchange, etc). Notably, whole-stage code generation operations are also annotated with the code generation id. For stages belonging to Spark DataFrame or SQL execution, this allows you to cross-reference stage execution details to the relevant query in the SQL Tab.

Summary metrics for all tasks are represented in a table and in a timeline:

• Task deserialization time is the time spent deserializing the task closure on an executor before it can run.
• Duration of tasks.
• GC time is the total JVM garbage collection time.
• Result serialization time is the time spent serializing the task result on an executor before sending it back to the driver.
• Getting result time is the time that the driver spends fetching task results from workers.
• Scheduler delay is the time the task waits to be scheduled for execution.
• Peak execution memory is the maximum memory used by the internal data structures created during shuffles, aggregations and joins.
• Shuffle Read Size / Records. Total shuffle bytes read, includes both data read locally and data read from remote executors.
• Shuffle Read Fetch Wait Time is the time that tasks spent blocked waiting for shuffle data to be read from remote machines.
• Shuffle Remote Reads is the total shuffle bytes read from remote executors.
• Shuffle Write Time is the time that tasks spent writing shuffle data.
• Shuffle spill (memory) is the size of the deserialized form of the shuffled data in memory.
• Shuffle spill (disk) is the size of the serialized form of the data on disk.

The same metrics are also shown aggregated by executor. Accumulators are shared variables that can be updated inside transformations; only named accumulators are displayed here. Finally, a tasks table shows the same information broken down per task, with links to executor logs and the task attempt number for failures.

Storage Tab

The Storage tab displays the persisted RDDs and DataFrames, if any, in the application. The summary page shows the storage levels, sizes and partitions of all RDDs, and the details page shows the sizes and using executors for all partitions in an RDD or DataFrame.

scala> import org.apache.spark.storage.StorageLevel._
import org.apache.spark.storage.StorageLevel._

scala> val rdd = sc.range(0, 100, 1, 5).setName("rdd")
rdd: org.apache.spark.rdd.RDD[Long] = rdd MapPartitionsRDD[1] at range at <console>:27

scala> rdd.persist(MEMORY_ONLY_SER)
res0: rdd.type = rdd MapPartitionsRDD[1] at range at <console>:27

scala> rdd.count
res1: Long = 100

scala> val df = Seq((1, "andy"), (2, "bob"), (2, "andy")).toDF("count", "name")
df: org.apache.spark.sql.DataFrame = [count: int, name: string]

scala> df.persist(DISK_ONLY)
res2: df.type = [count: int, name: string]

scala> df.count
res3: Long = 3

After running the above example, we can find two RDDs listed in the Storage tab. Basic information like storage level, number of partitions and memory overhead are provided. Note that the newly persisted RDDs or DataFrames are not shown in the tab before they are materialized. To monitor a specific RDD or DataFrame, make sure an action operation has been triggered.

You can click the RDD name ‘rdd’ for obtaining the details of data persistence, such as the data distribution on the cluster.

Environment Tab

The Environment tab is the place to verify that your Spark application is running with the configuration you expect. It groups the environment and configuration information into a set of sub-tabs along the left side of the page; clicking one switches the panel on the right.

The sub-tabs are:

• Runtime Information — JVM, Scala, and other runtime properties of the driver.
• Spark Properties — the effective application properties (such as spark.app.name and spark.driver.memory). Note that spark.hadoop.* properties are listed here, not under Hadoop Properties.
• Resource Profiles — CPU, memory, and accelerator resource requests for each resource profile in use.
• Hadoop Properties — values loaded from Hadoop and YARN configuration files.
• System Properties — the underlying JVM system properties.
• Metrics Properties — the configuration loaded for the metrics system.
• Classpath Entries — the classes loaded into the driver, broken down by source. Handy when tracking down class conflicts.

Executors Tab

The Executors tab lists every executor that has been allocated to the application, including the driver. Each row shows resource usage (memory, disk, cores), storage memory reserved for cached data, task counts, shuffle totals, and performance signals such as GC time.

Each row carries a set of detail links — Thread Dump, Heap Histogram, and Flame Graph — that open the corresponding live data for that executor in a side panel without leaving the page. The panel can be resized by dragging its left edge. The stderr and stdout links open the executor’s log files in a new view; the exact location of those logs depends on your cluster manager (see Monitoring and Instrumentation for details).

SQL Tab

Query Listing

The SQL tab lists all SQL and DataFrame queries submitted to the Spark application. Any DataFrame action that triggers execution (such as count, show, or write) shows up here, not only queries written as SQL strings. Here is a short example that produces a few entries:

df = spark.createDataFrame([(1, "andy"), (2, "bob"), (2, "andy")], ["count", "name"])
df.count()
df.createOrReplaceTempView("df")
spark.sql("SELECT name, SUM(count) FROM df GROUP BY name").show()

The listing supports sorting by column, searching, filtering by status, and pagination, which makes it easy to locate a specific query in long-running applications.

SQL Plan Visualization

Each query in the listing has a graph view of its operators. Every node shows the operator name together with its metrics inline, and the edges follow the data flow. You can pan and zoom the graph to navigate large plans, search for a node by name, and click any node to open a side panel with its full details.

Execution Detail Page

The execution detail page, opened by clicking the ID or Description link of any row in the query listing, gathers everything recorded for a single query. The header lists the query’s submission time, duration, status, description, and the jobs and stages associated with it. The SQL Plan Visualization shows the graph of operators. At the bottom of the page, a “Details” link expands the full text of the parsed, analyzed, and optimized logical plans together with the physical plan, useful when you want to see how Spark transformed your query during planning.

SQL metrics

Each node in the SQL Plan Visualization carries its own metrics inline. These metrics are useful when you want to dive into the execution details of each operator. For example, number of output rows shows how many rows pass through a Filter operator, and shuffle bytes written in an Exchange shows how much data the shuffle wrote.

Here is the list of SQL metrics:

Structured Streaming Tab

When running Structured Streaming jobs in micro-batch mode, a Structured Streaming tab will be available on the Web UI. The overview page displays some brief statistics for running and completed queries. Also, you can check the latest exception of a failed query. For detailed statistics, please click a “run id” in the tables.

The statistics page displays some useful metrics for insight into the status of your streaming queries. Currently, it contains the following metrics.

• Input Rate. The aggregate (across all sources) rate of data arriving.
• Process Rate. The aggregate (across all sources) rate at which Spark is processing data.
• Input Rows. The aggregate (across all sources) number of records processed in a trigger.
• Batch Duration. The process duration of each batch.
• Operation Duration. The amount of time taken to perform various operations in milliseconds. The tracked operations are listed as follows.
  • addBatch: Time taken to read the micro-batch’s input data from the sources, process it, and write the batch’s output to the sink. This should take the bulk of the micro-batch’s time.
  • getBatch: Time taken to prepare the logical query to read the input of the current micro-batch from the sources.
  • latestOffset & getOffset: Time taken to query the maximum available offset for this source.
  • queryPlanning: Time taken to generates the execution plan.
  • walCommit: Time taken to write the offsets to the metadata log.
• Global Watermark Gap. The gap between batch timestamp and global watermark for the batch.
• Aggregated Number Of Total State Rows. The aggregated number of total state rows.
• Aggregated Number Of Updated State Rows. The aggregated number of updated state rows.
• Aggregated State Memory Used In Bytes. The aggregated state memory used in bytes.
• Aggregated Number Of State Rows Dropped By Watermark. The aggregated number of state rows dropped by watermark.

As an early-release version, the statistics page is still under development and will be improved in future releases.

Streaming (DStreams) Tab

The web UI includes a Streaming tab if the application uses Spark Streaming with DStream API. This tab displays scheduling delay and processing time for each micro-batch in the data stream, which can be useful for troubleshooting the streaming application.

JDBC/ODBC Server Tab

We can see this tab when Spark is running as a distributed SQL engine. It shows information about sessions and submitted SQL operations.

The first section of the page displays general information about the JDBC/ODBC server: start time and uptime.

The second section contains information about active and finished sessions.

• User and IP of the connection.
• Session id link to access to session info.
• Start time, finish time and duration of the session.
• Total execute is the number of operations submitted in this session.

The third section has the SQL statistics of the submitted operations.

• User that submit the operation.
• Job id link to jobs tab.
• Group id of the query that group all jobs together. An application can cancel all running jobs using this group id.
• Start time of the operation.
• Finish time of the execution, before fetching the results.
• Close time of the operation after fetching the results.
• Execution time is the difference between finish time and start time.
• Duration time is the difference between close time and start time.
• Statement is the operation being executed.
• State of the process.
  • Started, first state, when the process begins.
  • Compiled, execution plan generated.
  • Failed, final state when the execution failed or finished with error.
  • Canceled, final state when the execution is canceled.
  • Finished processing and waiting to fetch results.
  • Closed, final state when client closed the statement.
• Detail of the execution plan with parsed logical plan, analyzed logical plan, optimized logical plan and physical plan or errors in the SQL statement.
